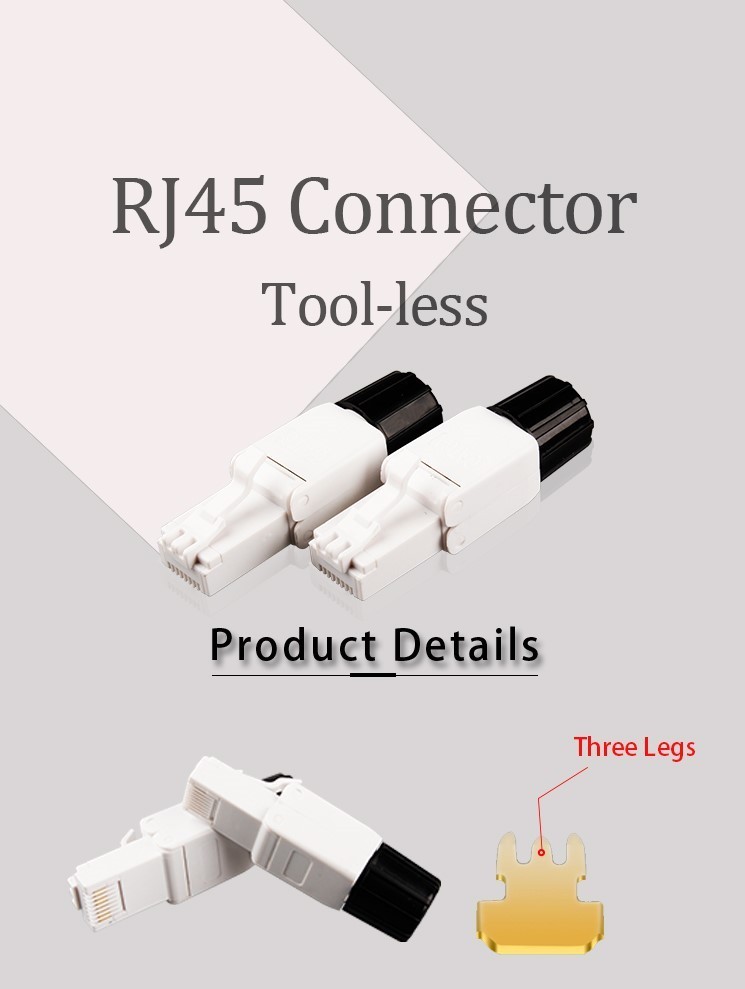

CAT.6A 専用工具不要 UTP モジュラープラグ

主なケーブルの仕様
シードMAP
UTPCAT6A 7.8mm

通信興業
TSUNET-10GE 7.7mm 200m 12kg
TSUNET-ECO〓-10GE AWG23-4P 7.7mm

富士電線
TPCC 6A 23AWG × 4P 7.7mm

日本製線
NSGDT6-10G-S 7.5mm300m 19kg
4P NSGDT6-10G-WARP 7.3mm

日立金属
NETSTAR-C6A-SA4P 7.2mm

スリーエム(3M)
VOL-6AC4L-FGY-305L　7.3mm

パンドウィット
PUL6AV04*-EG
PUC6AV04*-EG
PUR6AV04BU-G

サンワサプライ　KB-T6A-CB100BL 6.4mm 14.54kg

エレコム
LD-GPAL/BU100RS　LD-GPAL/BU300RS　6.2mm 16kg

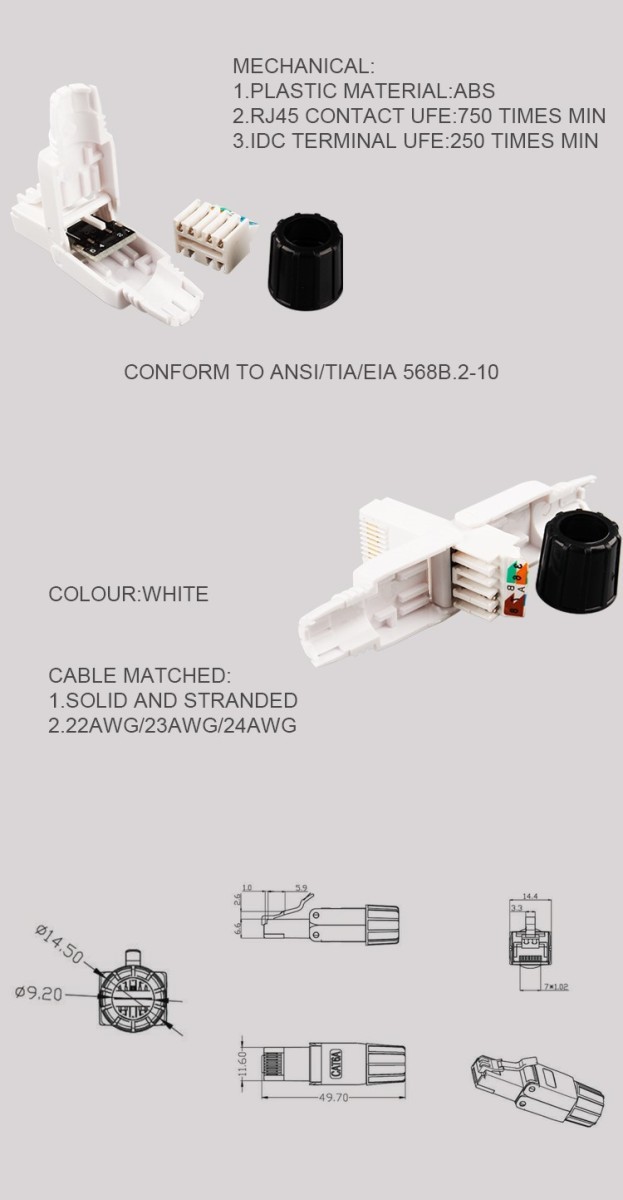

Product DescriptionApplication*Certification:ISO9001,ETL,CE,RoHS,*Standard:Comply with FCC Part 68 standardMeet reliability test based on IEC 60603-7 ISO/IEC11801*Wiring Scheme：T568A/T568B*Application:1000BASE-T,100BASE-Tx,10BASE-T,155M ATM,4/16MB Token Ring,100MbpsTP-PMD,ISDN,ADSL,Analog & Digital Voice (VoIP) / Video,Power over Ethernet (PoE),Control SignalSpecification*RJ45 Cat6a unshielded toolless plug*Colour:white*Solid and stranded*22AWG/23AWG/24AWG*Contact resistance:20m OHM*Insulation resistance:?500M OHM @100V DC*Withstand voltage:DC1000V AC700V RMS 60HZ, IMIN*Cat6A permanent link:conform to ANSI/TIA/EIA 568B 2-10*Storage:-40°-+70°*Operation：-10°-+60°*Plastic material:new ABS*RJ45 contact life:750 times min*IDC terminal life:250 times minFeature*Conform to CAT6a standard,suitable between*Equipment and horizontal subsystems of termination
